Cross Flow Fans

These Fans use impellers where the diameter is less compared to its length. Air outlet is at a low velocity ensuring low noise level. Impeller is made of Aluminium, Galvanized Steel or Engineering Plastics, and coupled with External Rotor Motor with Extended Shaft. The assembly is duly Balanced in two planes to ensure vibration free running.

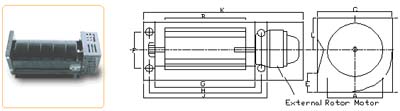

Cross Flow Fans



Model
A
B
C
D
E
F
G
H
J
K
L
CFF 23/100*/H
100
325
144
134
38
90
364
385
405
479
65
CFF 23/125*/H
125
330
175
180
50
100
380
405
424
500
90

Technical Specifications :

Impeller Dia.

:

200 mm Max.

Impeller Length

:

600 mm Max.

Air Flow

:

50 to 500 m3/hr

Voltage

:

110, 230, 440 V AC (50/60 Hz.)

Power Input

:

20 to 200 Watts

Speed

:

1400, 2800 RPM

NOTE : Motors with CE Mark and confirm to EN 60335-1 standards

Cross Flow Fans

MODEL
Impeller
Dim.
Voltage
V
Amps
A
Watts
W
Speed
RPM
Air Flow
m3/hr
CFF 23/100*/H
100 X 325
230
0.25
55
2600
298

CFF 23/125*/H
125 X 330
230
0.30
65
1370
430


Typical Applications :

Lift Cabin Cooling
Electronic Panel Cooling
HVAC applications
Applications needing Air at low velocity

-----------------------------------------------------------------------------------------------------------------------------
