Centrifugal Blowers Single Inlet

These Blowers normally use forward curved impellers made of galvanized steel, which are press fitted on the Rotor of External Rotor Motor, making the unit compact. Single inlet signifies that the Air is drawn from one side of the Blower only. The Rotor with impeller is dynamically Balanced in two planes, for vibration free running during its entire life. The assembly of Motor and Impeller is essentially mounted in a technically designed Housing for optimum performance. The External Rotor Motor is cooled with the air stream flowing over it.


Blowers Range From

Impeller Diam.
:
125 to 240 mm
Air Flow
:
175 to 1200 m3/hr.
Input Voltage
:
110, 220, 440 V AC (50/60 Hz.)
Power Input
:
20 to 350 W

Note : Motor used with CE Mark and confirms to EN 60335-1 standards.

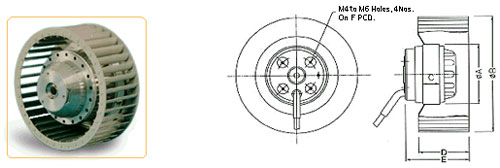

Dimensions
Centrifugal Blowers Single Inlet
Model
A
B
C
D
E
F
SI*/125*/*
92
125
15
50
70
58
SI*/140*/*
92
140
25/35
60
85
58
SI*/160*/*
92
160
35
63
89
58
SI*/180*/*
110
180
35/45
75
115
90
SI*/235*/*
110
235
45
95
120
90

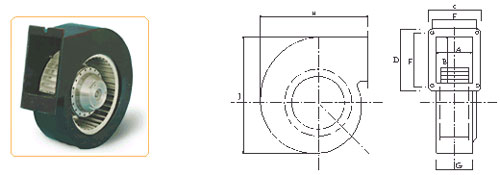

Centrifugal Blowers Single Inlet
Model
Impeller
Diam.
A
B
C
D
E
F
G
H
J
SI*/125*/H
125
65
50
105
90
85
70
53
175
170
SI*/140*/H
140
80
75
130
125
115
105
80
190
185
SI*/160*/H
160
80
92
120
130
100
108
82
234
240
SI*/180*/H
180
95
110
137
150
114
128
93
260
275

Technical Specifications :
Centrifugal Blowers Single Inlet 1400 RPM
MODEL
Rotor
Diam. mm.
Impeller
Diam.mm.
Voltage
V
Amps
A
Input
Watts W
Air
Volume m3/hr
SI 23/14014/H
92
140
230
0.28
65
370
SI 23/16014/H
92
160
230
0.40
90
450
SI 23/18014/H
110
180
230
0.50
110
600
SI 44/18014/H
110
180
415
0.35
140
650
SI 23/23514/H
110
235
230
1.00
220
900
SI 44/23514/H
110
235
415
0.60
250
950

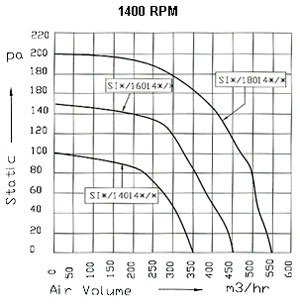

Air Flow Curves For Single Inlet Centrifugal Blower
Air Flow Curves For Single Inlet Centrifugal Blower
Conversion 100pa = 0.4 H2O 100m3/Hr = 60cfm

Centrifugal Blowers Single Inlet 2800 RPM

MODEL
Rotor
Diam. mm.
Impeller
Diam. mm.
Voltage
V
Amps
A
Watts
W
Air
Volume m3/hr
SI 23/12528/H
92
125
230
0.28
65
180
SI 23/14028/H
92
140
230
0.32
70
485
SI 44/14028/H
92
140
415
0.25
75
500
SI 23/16028/H
92
160
230
0.65
150
600
SI 44/16028/H
92
160
415
0.40
150
650
SI 23/18028/H
110
180
230
1.25
280
850
SI 44/18028/H
110
180
415
0.75
300
850

Air Flow Curves For Single Inlet Centrifugal Blower
2800 RPM
Air Flow Curves For Single Inlet Centrifugal Blower
Conversion 100pa = 0.4 H2O 100m3/Hr = 60cfm


Typical Applications

Cooling AC/DC Drives.
Air Balloons as an advertising media.
HVAC applications.
Applications with relatively small Air Volumes with high static pressure, and low noise levels.

-------------------------------------------------------------------------------------------------------------------
